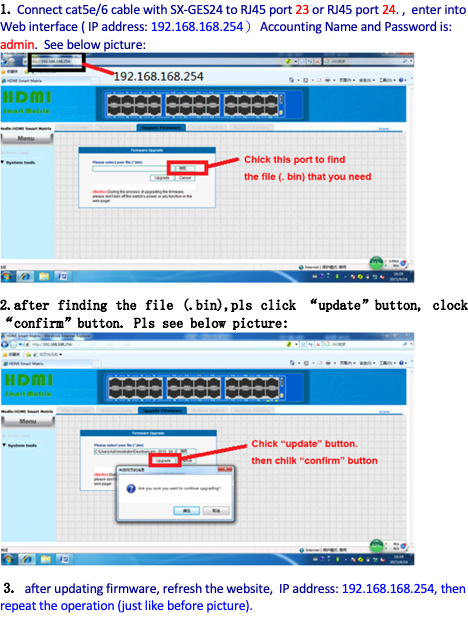

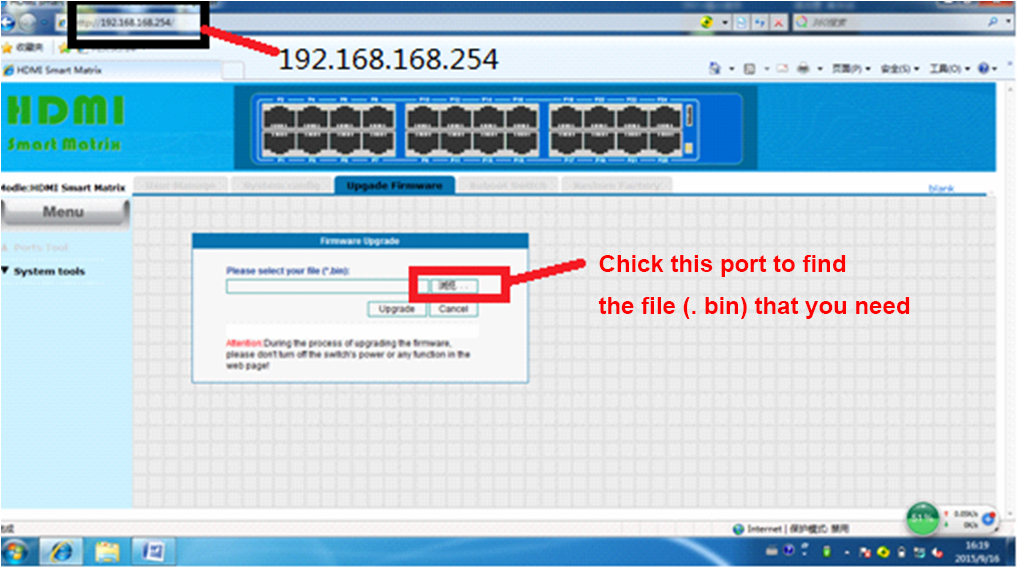

1. Connect cat5e/6 cable with SX-GES24 to RJ45 port 23 or RJ45 port 24. , enter into Web interface ( IP address: 192.168.168.254） Accounting Name and Password is: admin. See the below picture:

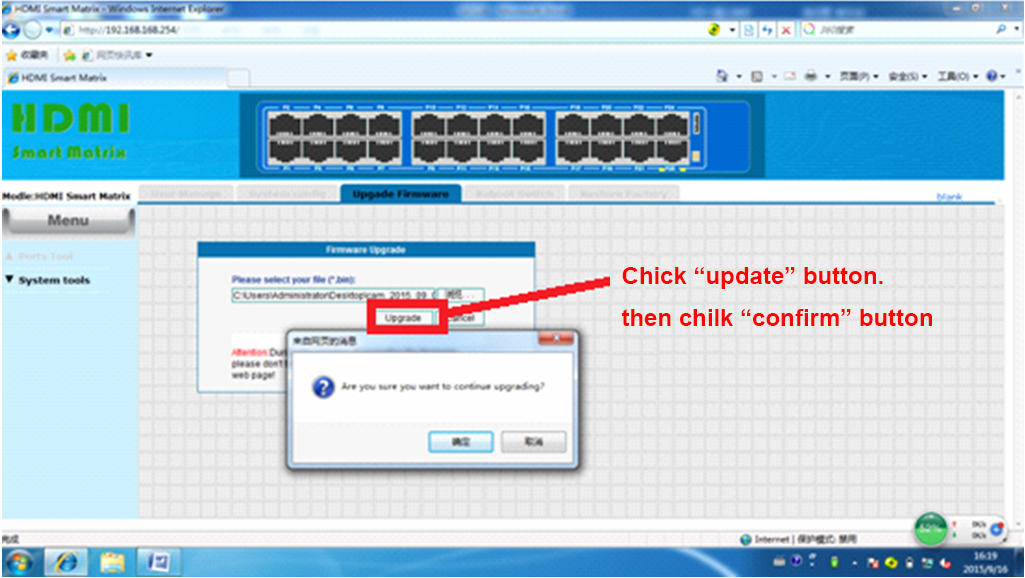

2. Find the file (.bin), you might need to unzip the file, pls click the “update” button, click the “confirm” button. Pls see the below picture:

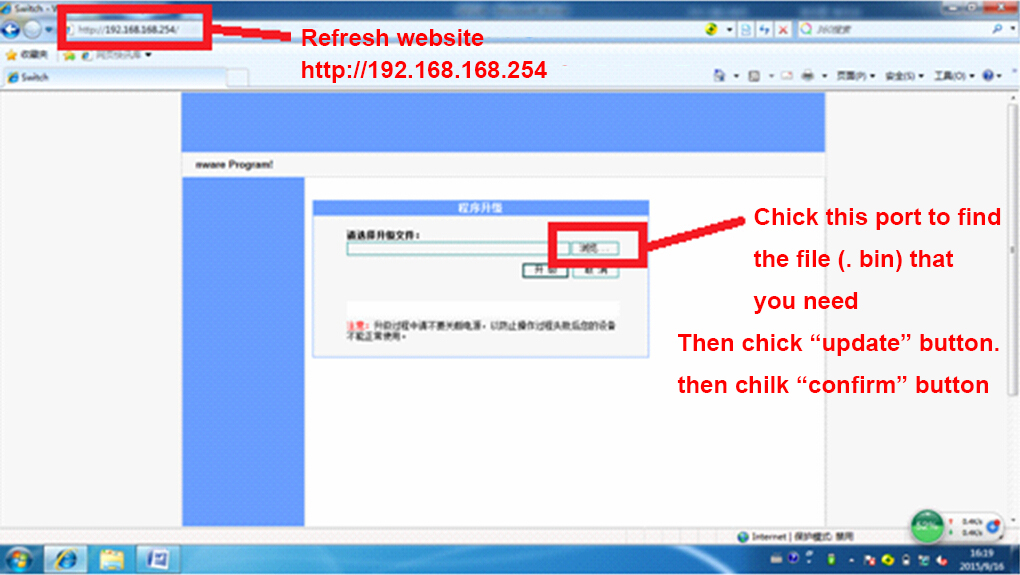

3. After updating firmware, refresh the website, IP address: 192.168.168.254, then repeat the operation (just like before picture).

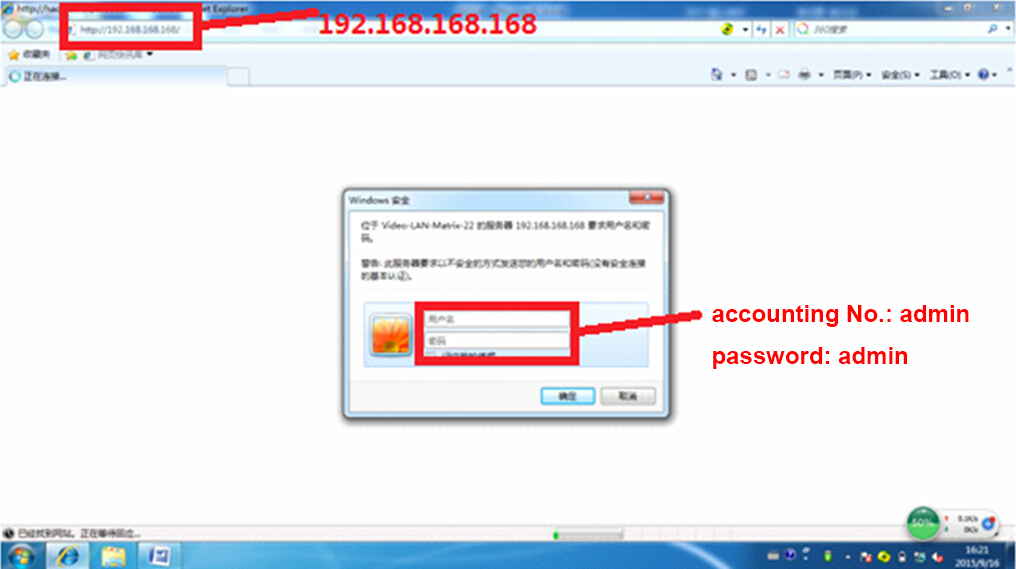

4. After updating firmware, enter into Web interface (IP address: 192.168.168.168）or 192.168.168.254 like below picture:
5. Enter into this new interface, control the switch by Web interface ( only RJ45 port 23 or RJ45 port 24 can do that).
